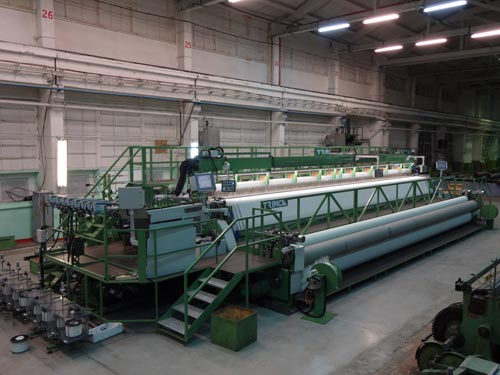

MOD. T.2N.10E/PS 11750

Weaving industrial machines for Synthetic fabrics

Flexible synthetic loom for weave forming - filter - dryer fabric

Explanation of the loom type letters and numbers:

T = loom suitable for weaving technical fabrics
2N = weft insertion system with 2 band rapiers, controlled and driven by servomotors by guide hooks
10E = number of mounted slay driving cam groups
PS = heavy loom supporting structure
11750 = weaving width (on request be possible all weaving width)


  • 8 Colors Weft Position Change, driven by Servomotors;
  • Max. weaving width 11750 mm (on request be possible all weaving width)
  • Min. weaving width 3000 mm
  • Weaving speed adjustable from 5 up to 90 rpm
  • Beat-up power max. 65000 N/m
  • Warp tension first beam 65000 N/m
  • Warp tension second beam 35000 N/m
  • number of the yarns for cm. Min. 4 – max. 100;
  • weft wire diameter min. mm. 0,13 – max. mm. 1,20.
  • Warp control tension 4 position;
  • WEFT TENSION CONTROL TRINCA TYPE CTT-8 driven by Servomotors with:
    -weft tension setting;
    - maximum/minimum admissible weft tension setting;
    - tension regulation in cN;
    - save all tension for each weft;
    - tension weft curve visualization; weft tension correction for each single pick;
    - weft crimp factor control;
  • Possibility to use full temple (TRINCA PATENTED) or lateral temple;
  • Left and right Close selvedge device, driven by Servomotors;
  • n. 2 let off with canister, driven by servomotors
  • n. 3 roller take up, regulation of the center roller by PC
  • n. 1 direct 3 roller take-up (Trinca patented) for winding fabric
  • Remand roller position control by the PC and driven by Servomotors;

Dobby type explanation:
R = Dobby
E = Electronically controlled
R = Rotary
Suitable for driving from 2 to 52 heddle frames complete with: dobby driven and controlled by the PC;

  • possibility of weaving with open shed and closed shed;
  • possibility to put the heddle frames onto its “0” point;
  • possibility to control and adjust manually each single frame;
  • possibility to adjust the frame position as needed by each fabric pattern and function of frames in the upper or in the lower part;
  • possibility of the frame standstill adjustments;
  • possibility of the frame phase adjustment;
  • fabric Multipatern.


The complete loom control, all data settings and operating function adjustments are carried out by the TRINCA electronic control device and the especially developed TRINCA loom managing. All electronically and electric control devices are installed inside the main switchboard and all data’s, as well as loom driving and control functions, are developed by an industrial PC with software windows CE.
