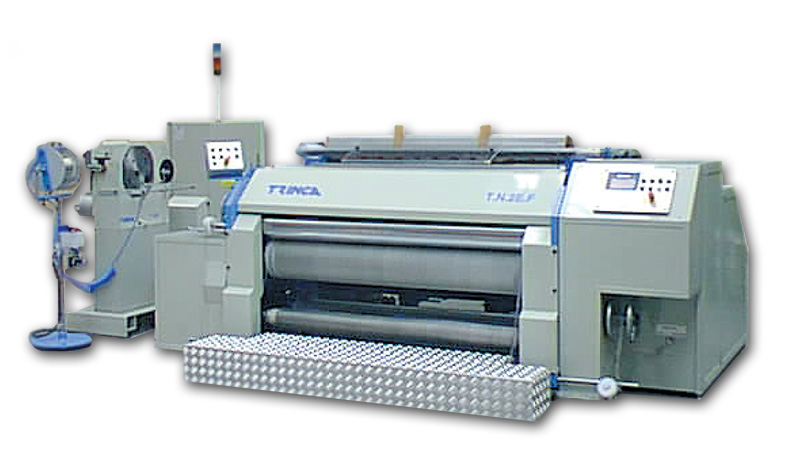

型號. T.N.E. - F

產業用布織機 for 金屬絲網

New range of weaving machines for industrial fabrics

The international market has an ever increasing demand for products of high quality yet frequently, in small quantities. The manufactures try to meet this new requirement by using machinery that offers higher fl exibility and reliability. Backed by many years of experience we have developed a new “T.N.E.” range of weaving machines incorporate substantial technological improvements that make them more fl exible while ensuring a high quality fabric with, at the same time, an important increase in productivity. The new T.N.E. range incorporates the following technical features:

• weft wire insertion by only band rapier with a patented kinematic mechanism that keeps the weft wire under tension
• slay movement driven by complementary cams in oil bath with a slay dwell during beat up
• fabric wind-up and tensioning by 3 roller nipping unit
• electronically controlled let-off and take-up units with digital mesh number input
• heald frame control by a cam motion unit or a dobby
• fabric wind-up on separate cloth beam that can easily be removed or, upon request, outside the weaving machine on a separate wind-up
• modular steel frame contruction which allows setting up the same machine type with a different number of complementary cam groups.
• The weaving machines are differentiated by the complementary cam groups to be mounted 2,3,4,5,6 and are designated T.N.2E - T.N.3E - T.N.4E
